This project explores the design of a large-scale 3D printing system developed for industrial and prototype manufacturing. The concept focuses on creating a stable and modular machine structure capable of supporting large-format prints while maintaining precision and reliability.

The design process involved building the full mechanical structure, including the frame system, motion components, and print platform. Special attention was given to structural rigidity and spatial layout to ensure the machine could operate smoothly during large-scale printing operations.

The final model was developed as a clean mechanical visualization, suitable for product presentation, concept development, and industrial design portfolios.

challenge.

The main challenge in this project was designing a large-format mechanical structure that maintains stability and precision during printing. Large 3D printers require a rigid frame and carefully balanced component placement to reduce vibration and ensure consistent print quality.

Another challenge was organizing the mechanical layout so the machine remains both functional and visually clear for presentation. The final design balances structural engineering considerations with a clean industrial design approach suitable for concept visualization.

results.

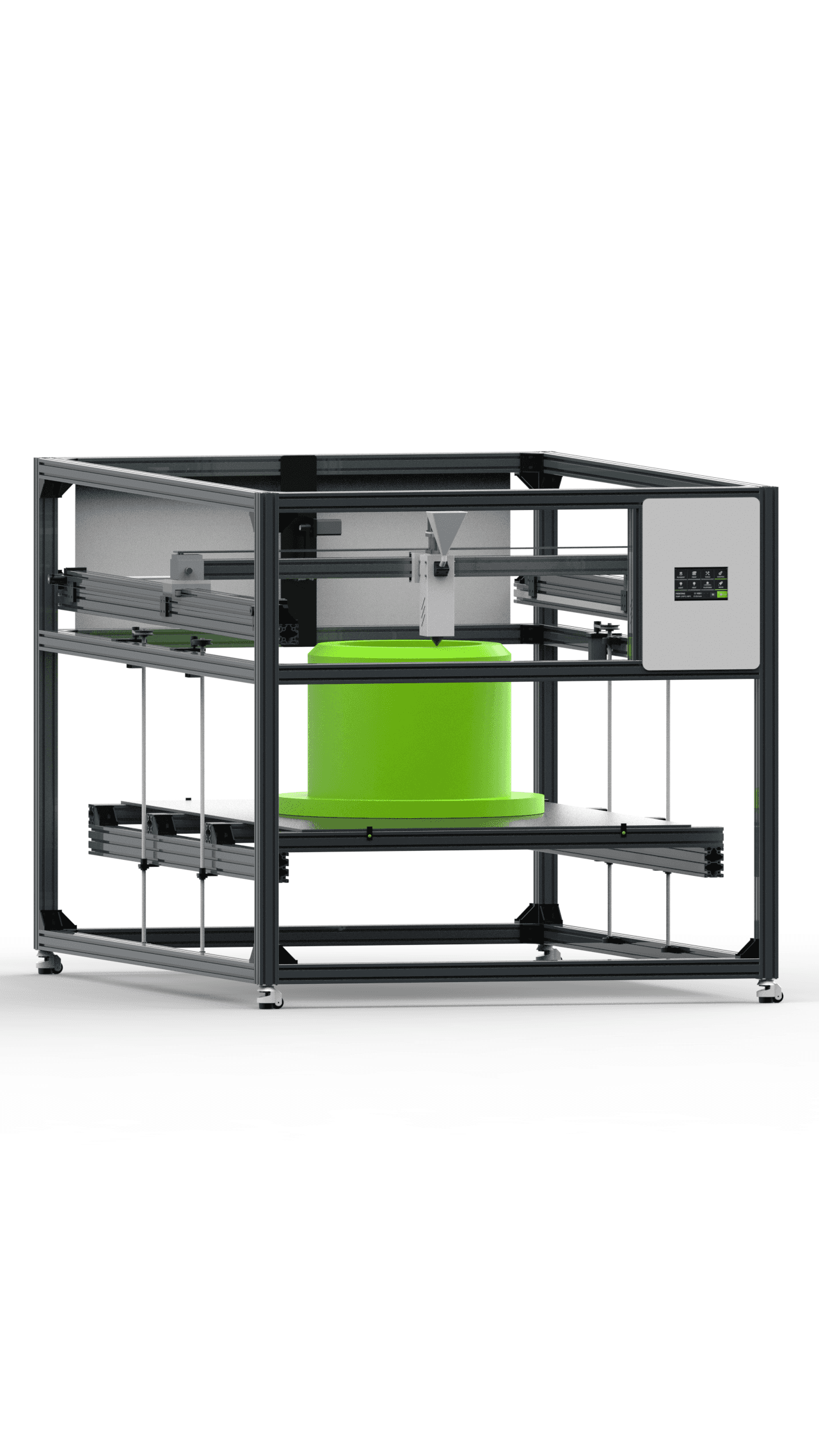

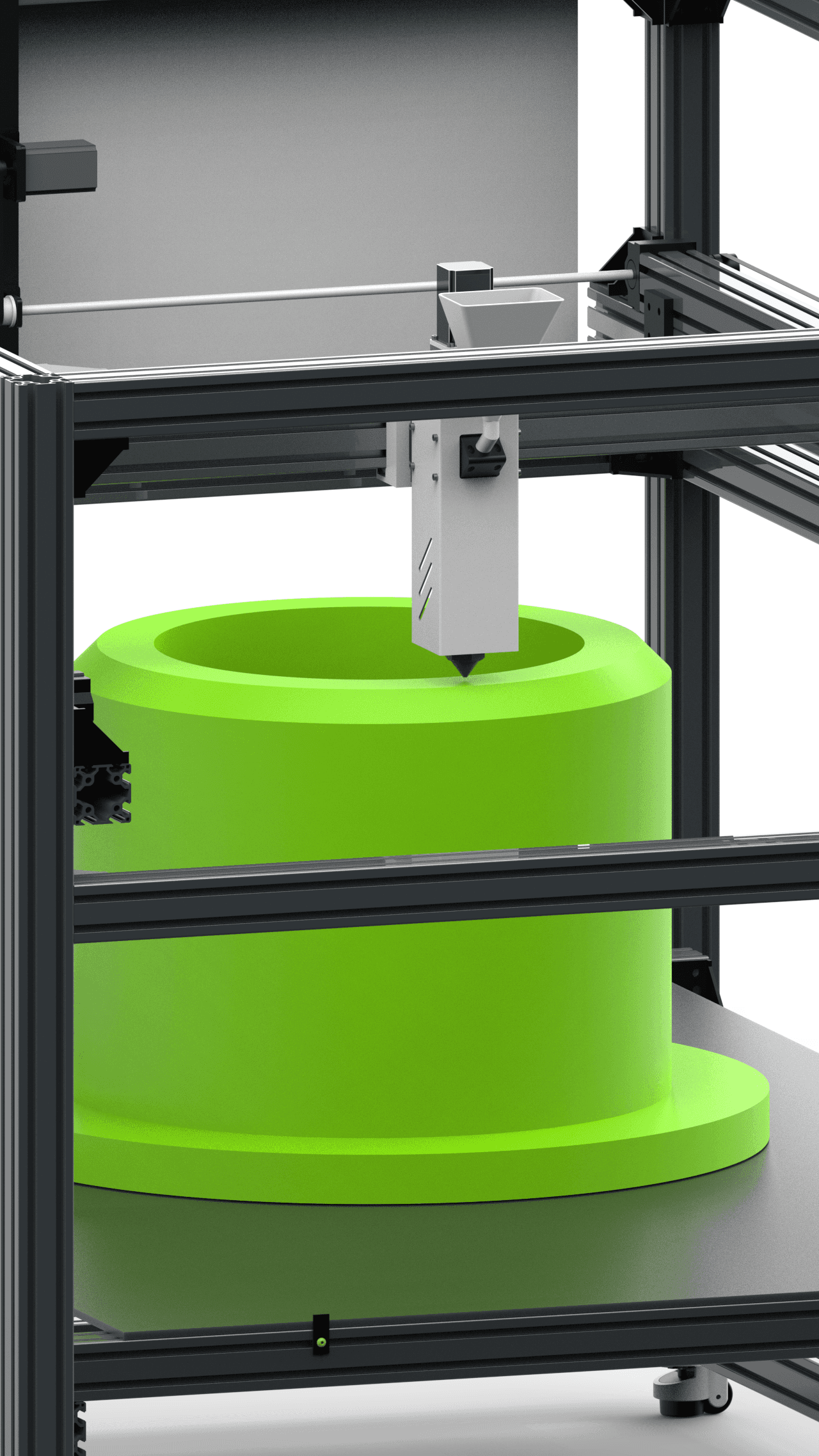

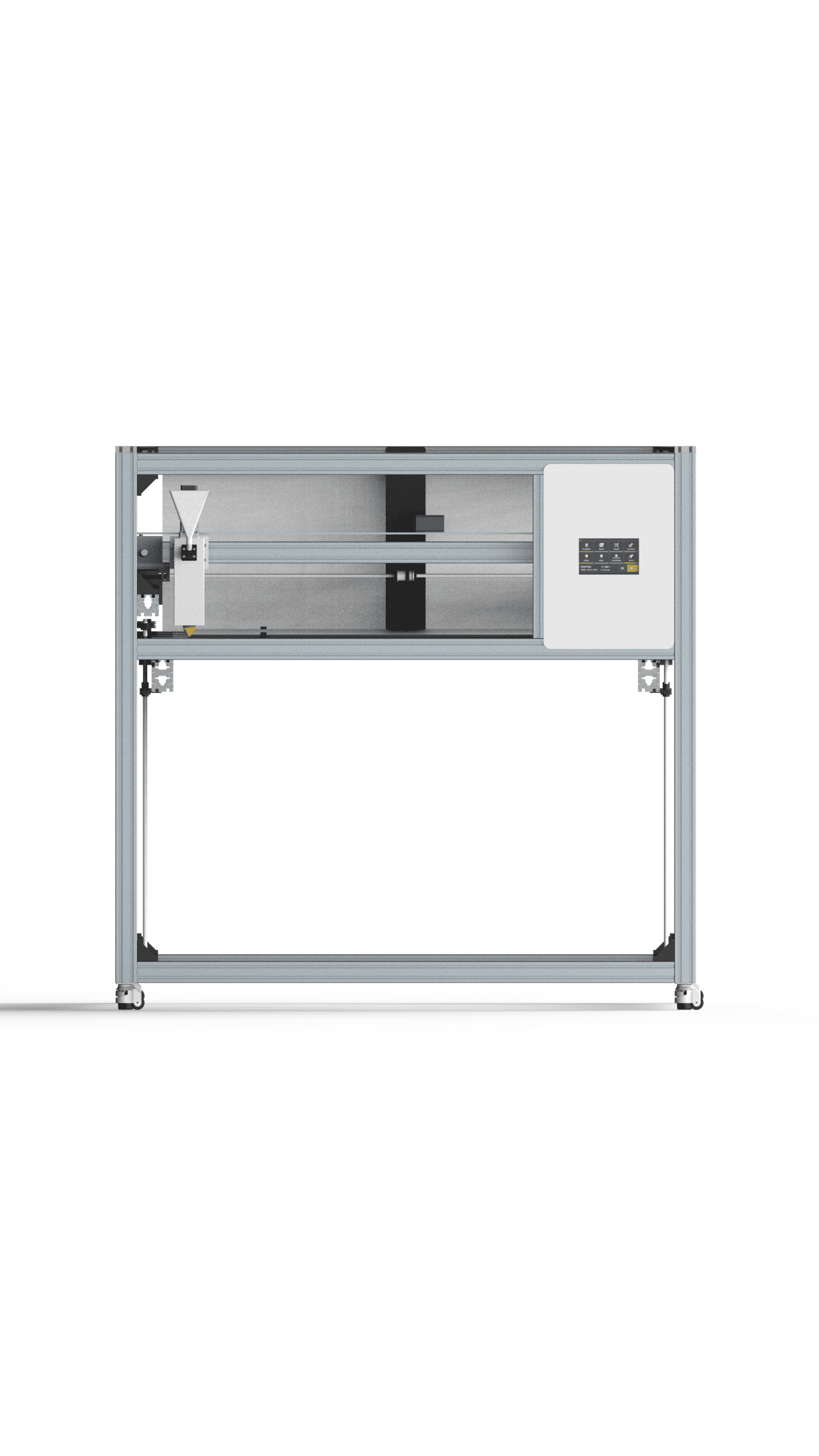

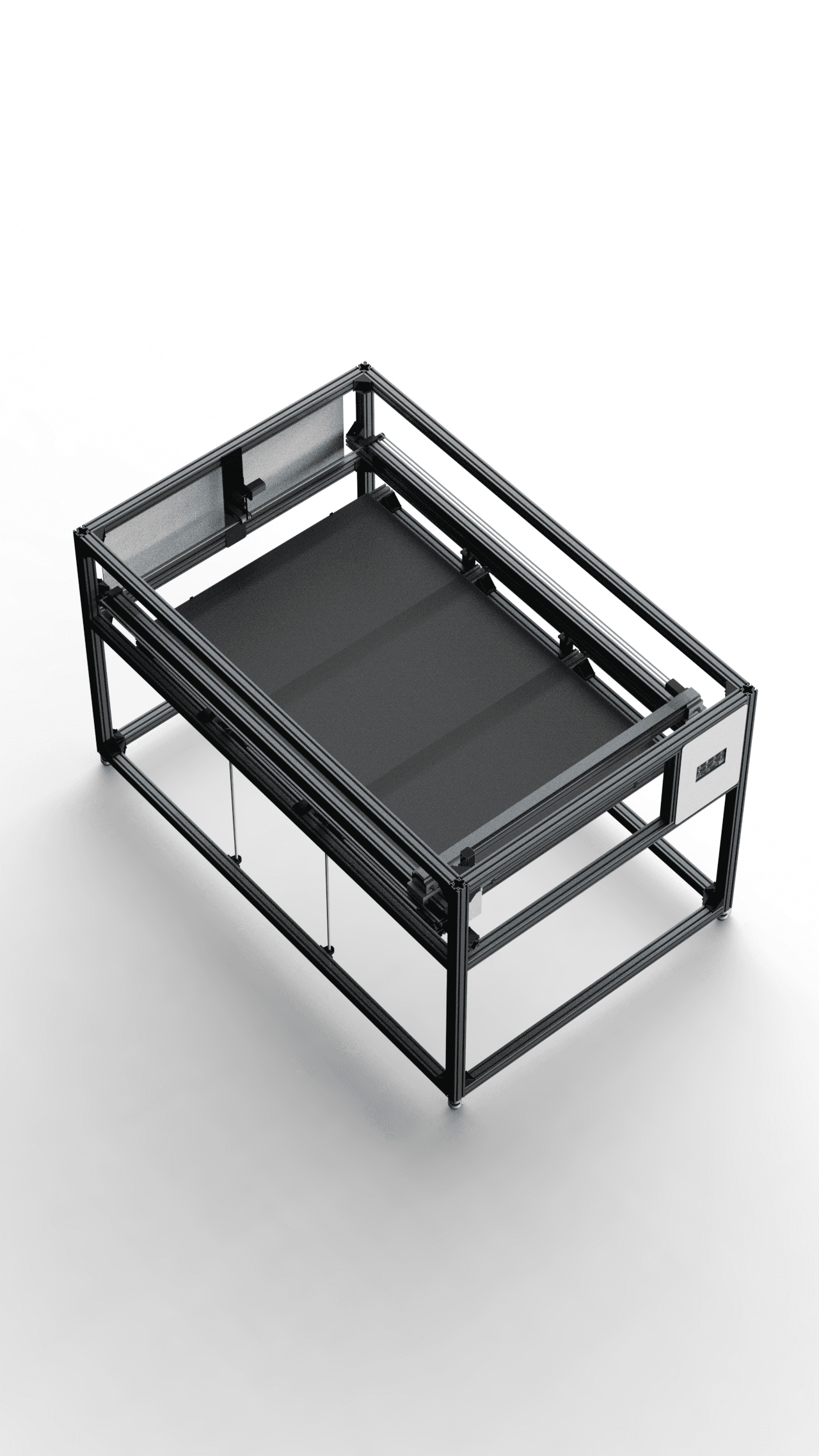

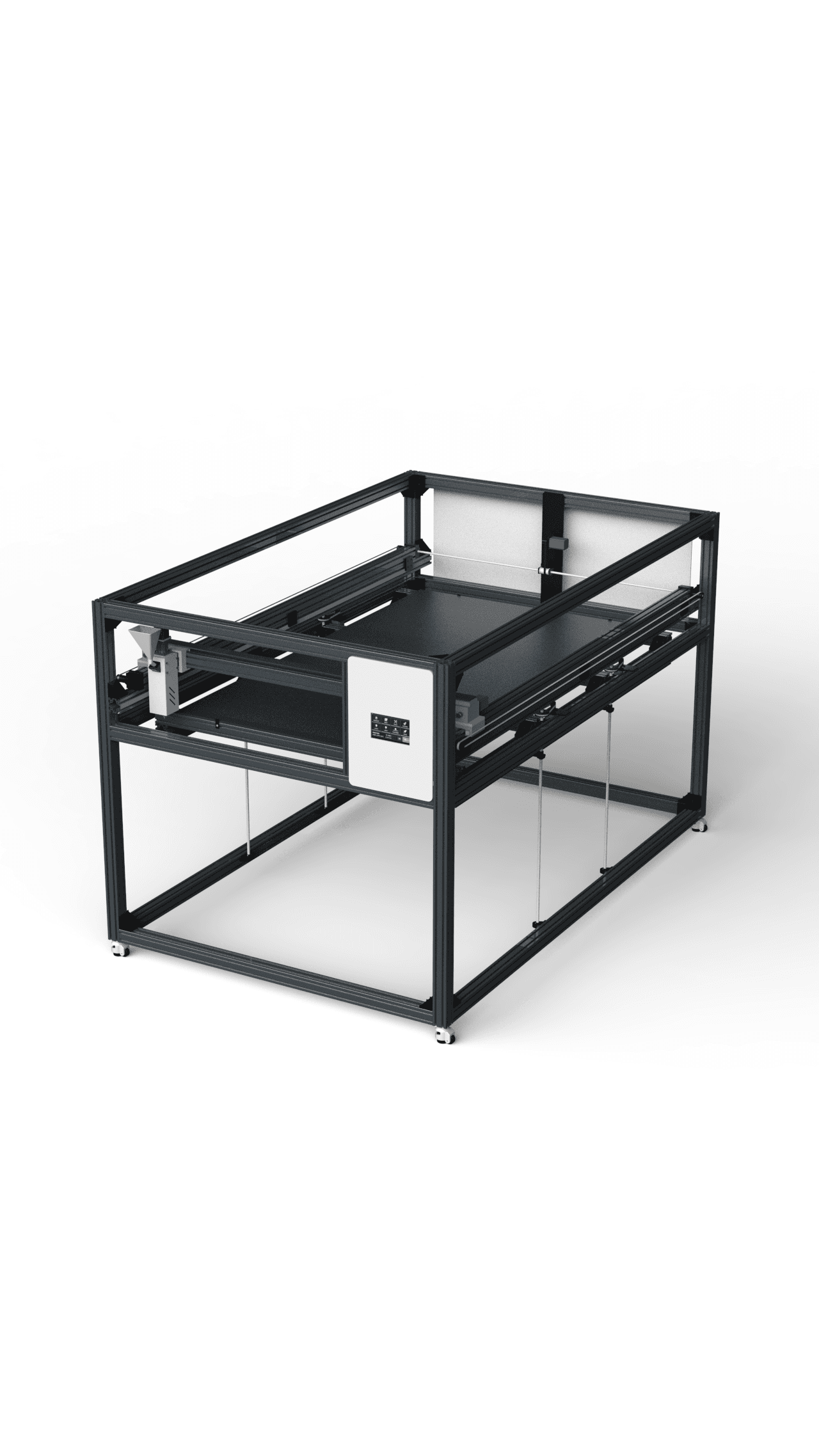

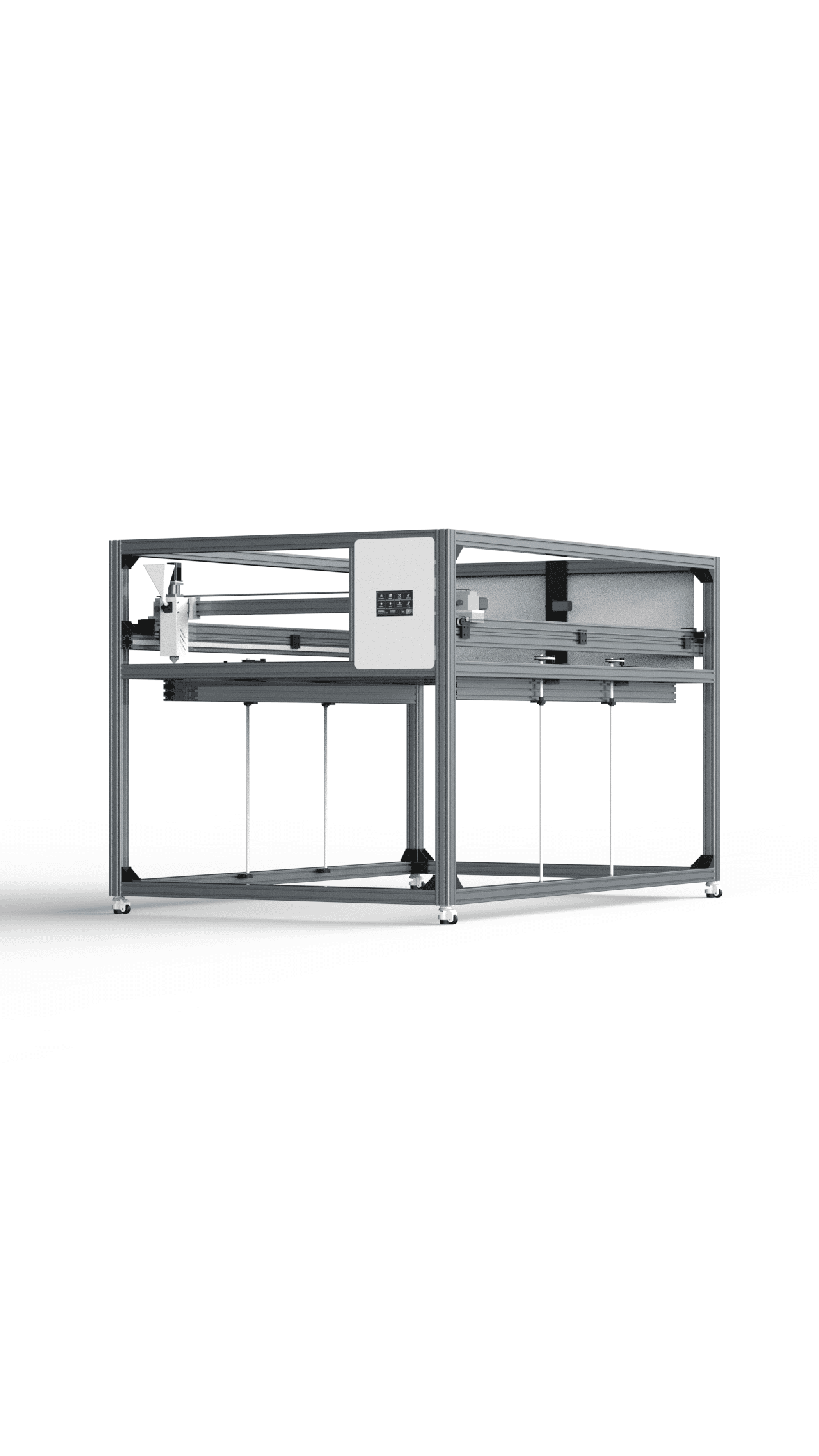

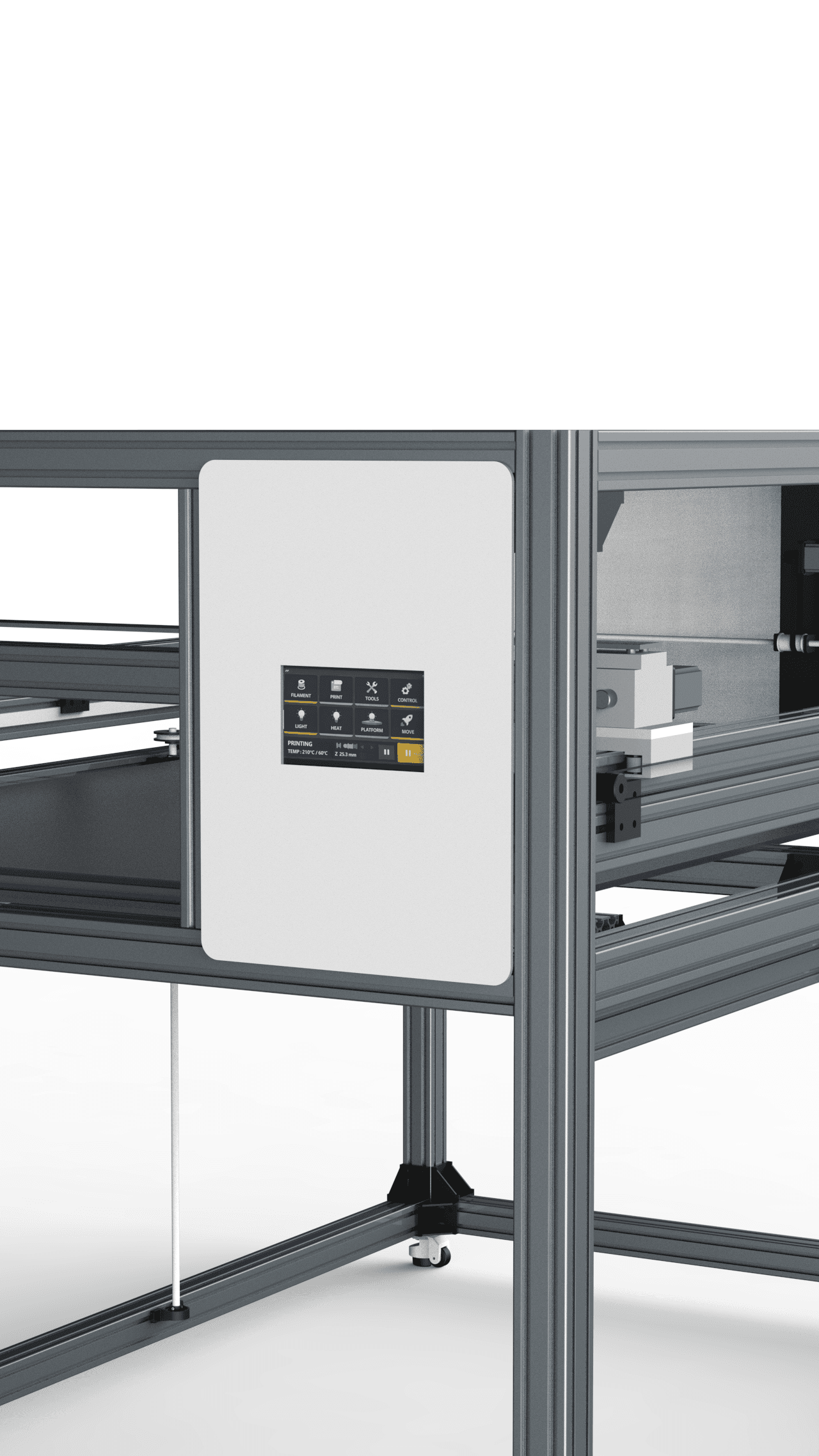

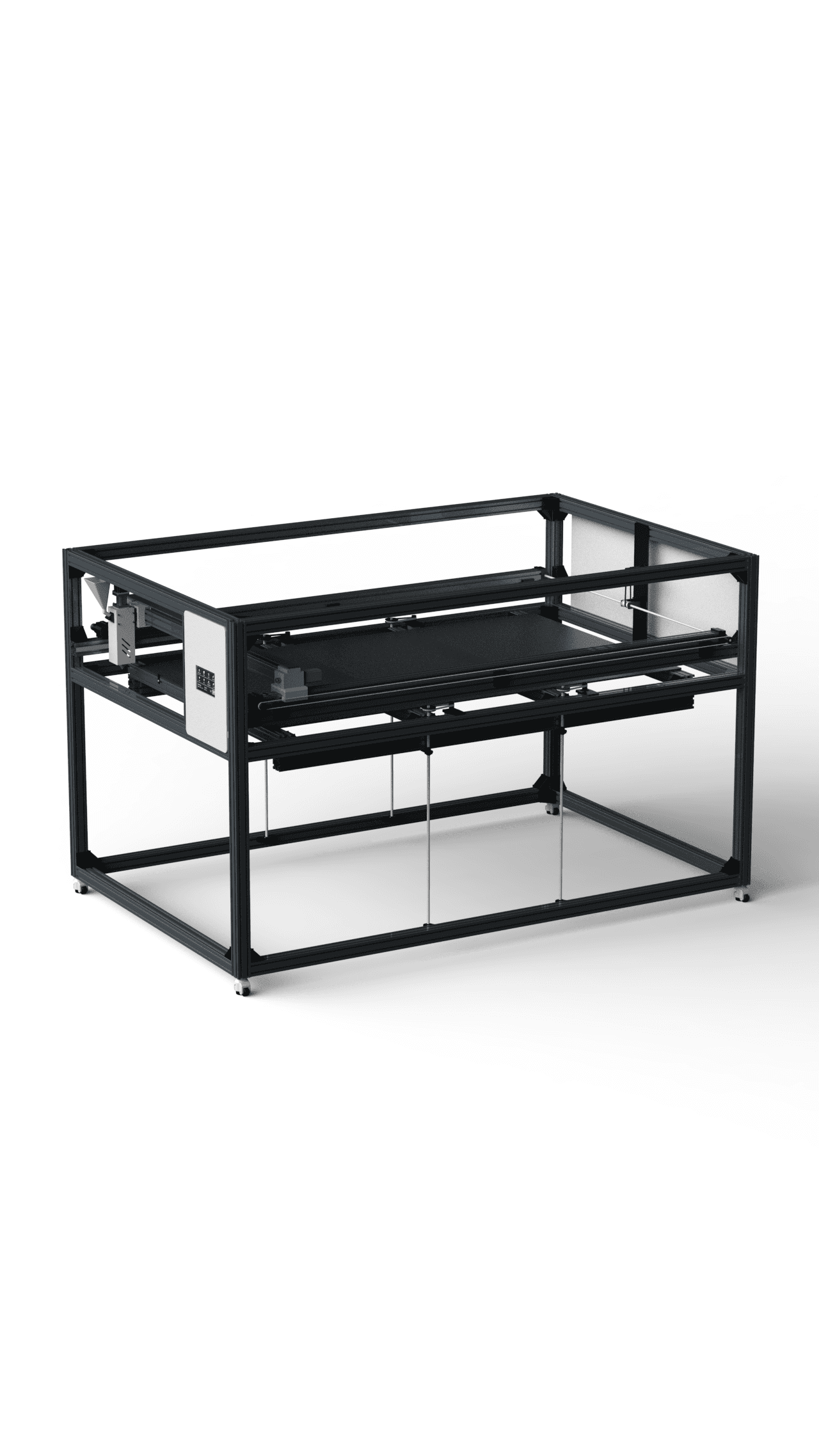

The final result is a detailed 3D model of a large-scale industrial 3D printing system designed with a strong structural frame and clear mechanical layout. The model demonstrates how large-format printers can be organized for stability, precision, and efficient operation.

This project highlights the ability to develop complex mechanical assemblies and present them through clean, high-quality 3D visualization. The final renders communicate the design clearly, making it suitable for concept presentation, engineering discussions, and industrial product visualization.
